$11.99

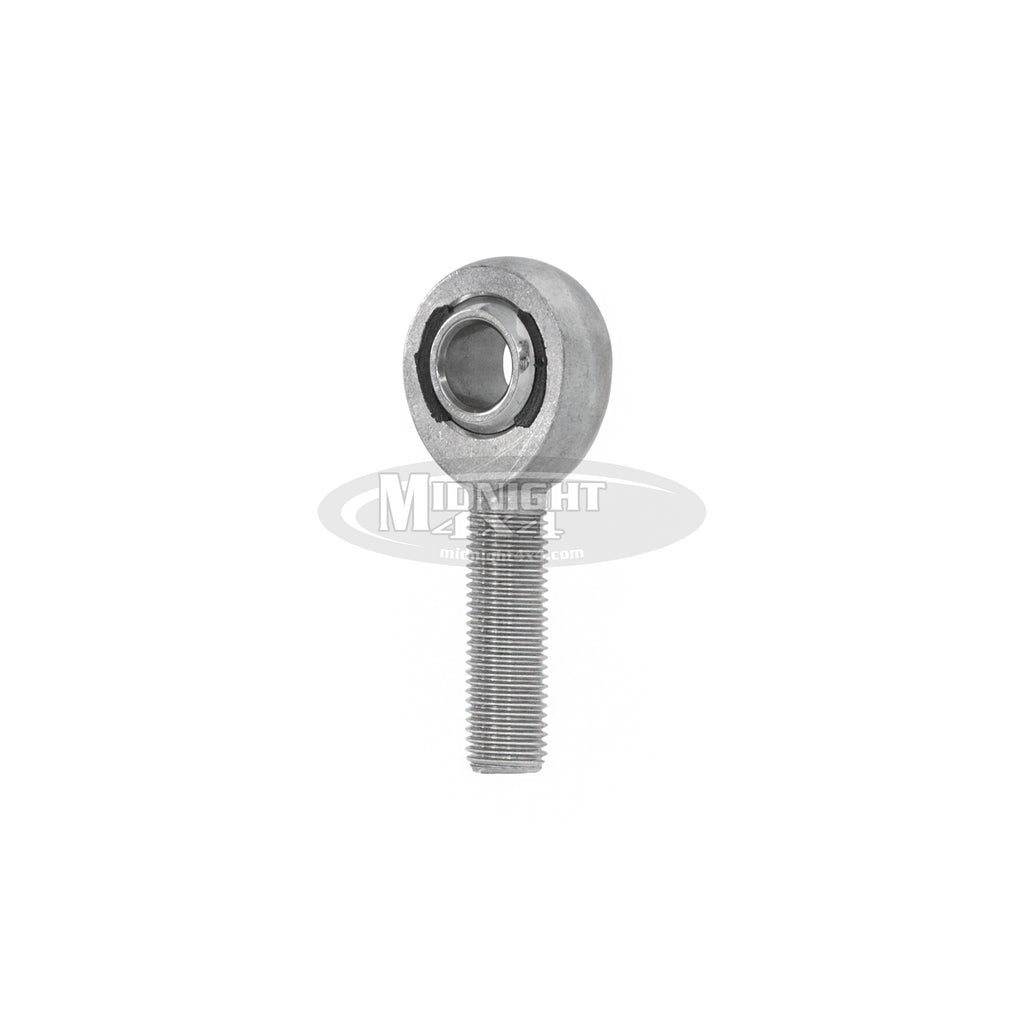

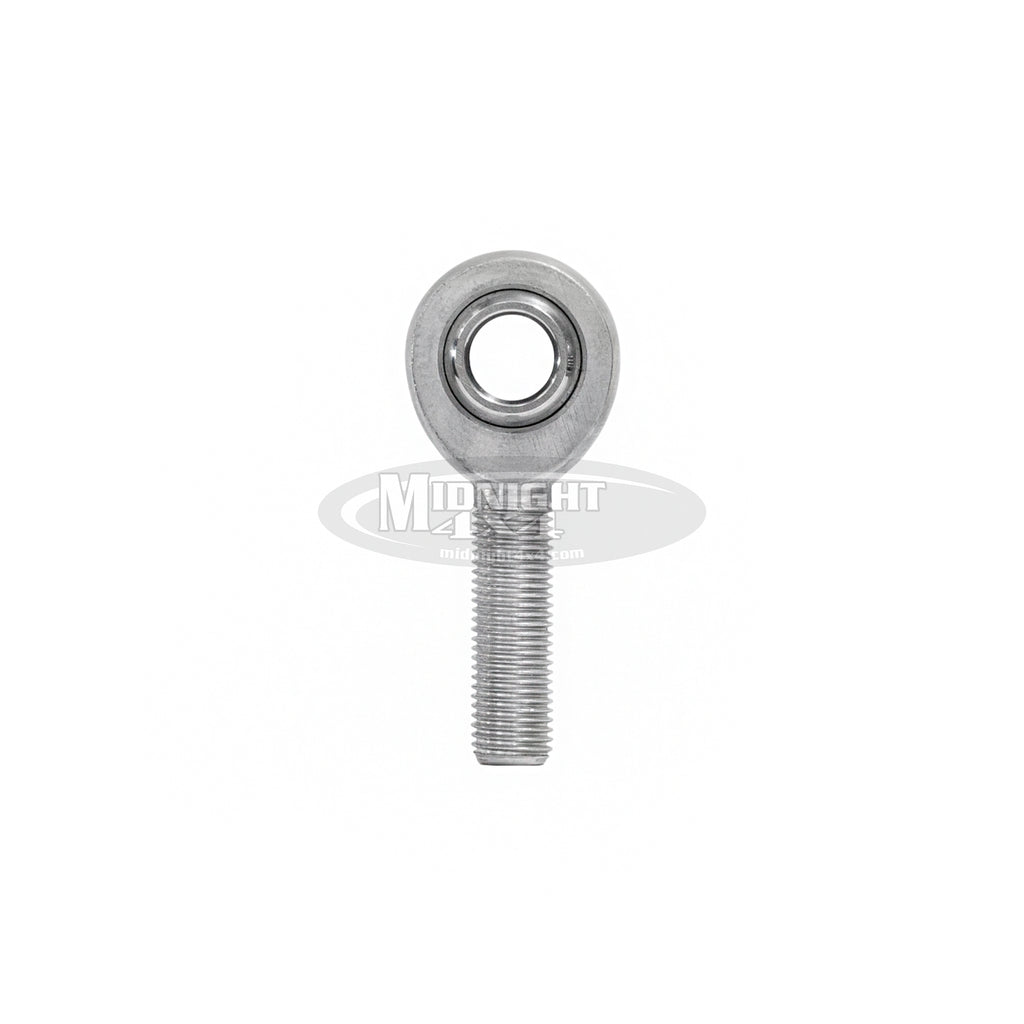

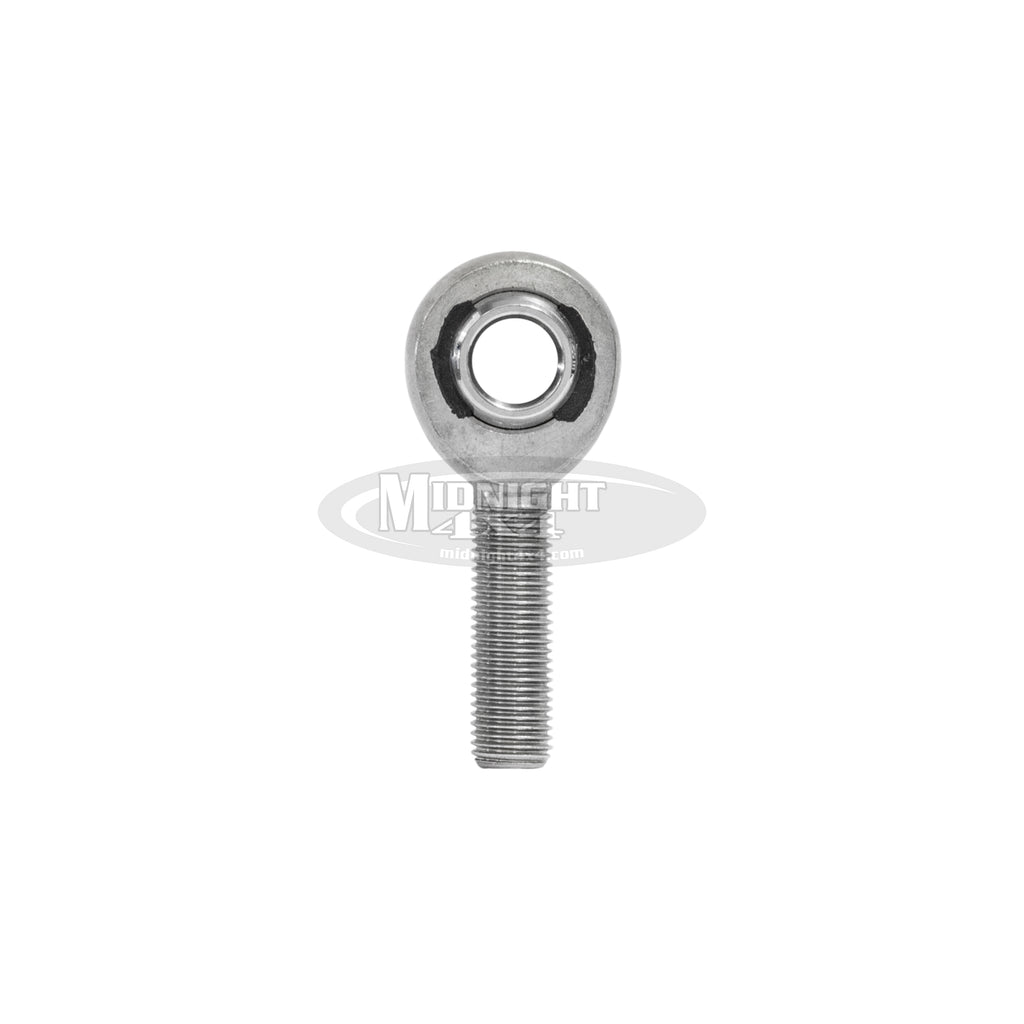

7/16" XM Series Rod End - XM7
7/16" Hole x 7/16" Shank Heim Joint
B: .4375 W: .562 T: .4375 A: 2.125 D: 1.125 C: 1.375
Ball Diameter: .812
Thread Pitch: 7/16 - 20
a* Misalignment Angle: 14
Radial Static Load (lbs): 4,218
Approx. Bearing Weight (lbs): .15
BALL
- 52100 Bearing Steel
- Heat Treated
- Hard Chrome Plated
- Precision Ground
RACE
- Nylon/PTFE
- Self-Lubricating
- Self-Sealing
BODY
- Carbon Steel
- Protective Coated for Corrosion Resistance
**Sold Individually
All products are generally stocked on shelves. If amount ordered is in excess of stock, longer processing time may apply.
