1/4" X Series Rod End - XM4

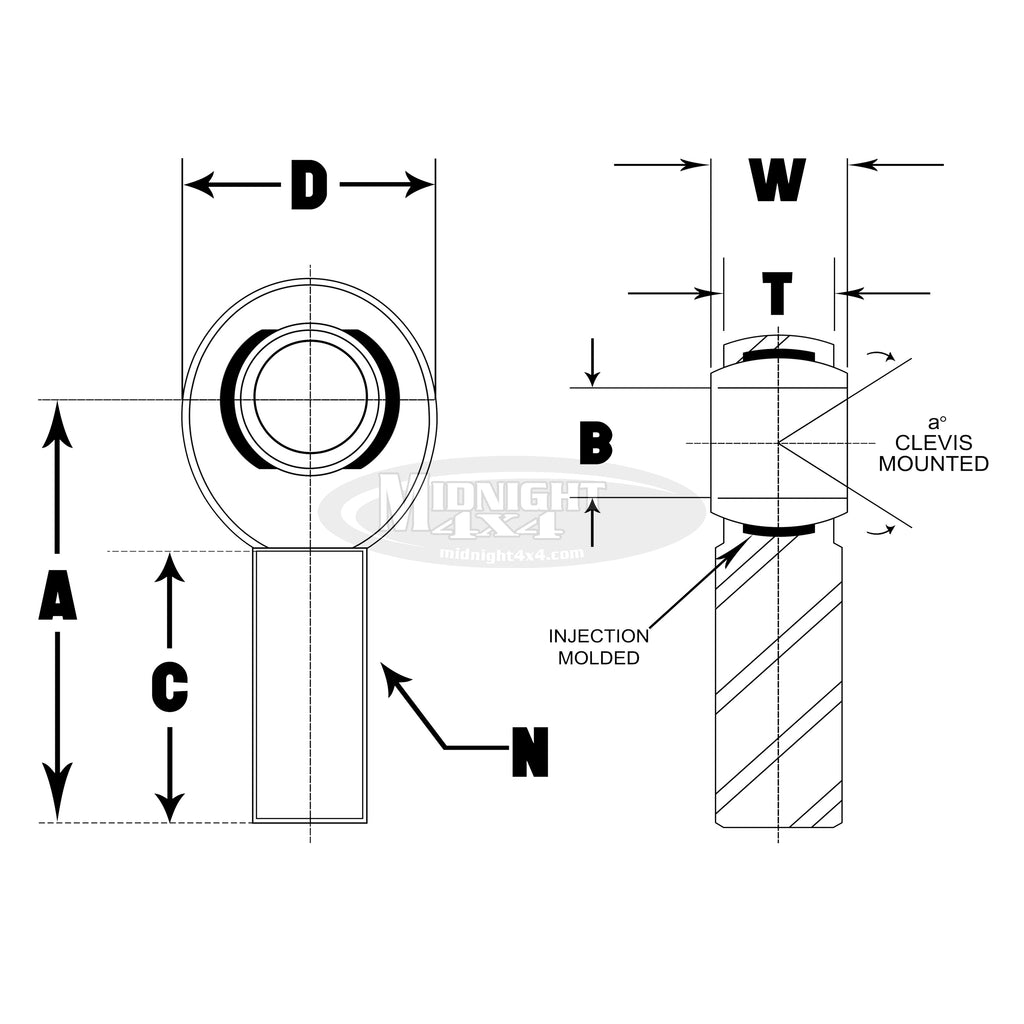

1/4" X Series Heim Joint, QA1, Midnight 4x4, .25 , Heim Joint Diagram

1/4" X Series Rod End - XM4

1/4" Hole x 1/4" Shank Heim Joint

B: .25      W: .357      T: .281      A: 1.562      D: .75      C: 1

Ball Diameter: .5

Thread Pitch: 1/4-28

a* Misalignment Angle: 16

Radial Static Load: 5260

Approx. Bearing Rate: .04



  • Heat Treated
  • Hard Chrome Plated
  • 52100 Bearing Steel
  • Precision Ground


  • Heat Treated
  • Chromoly Steel
  • Protective Coat For Corrosion Resistance


  • Self Sealing & Lubricating
  • Nylon/PTFE


**Sold Individually
