3/4" x 5/8" Race Series Rod End - RSMX10T
3/4" x 5/8" Race Series Rod End - RSMX10T

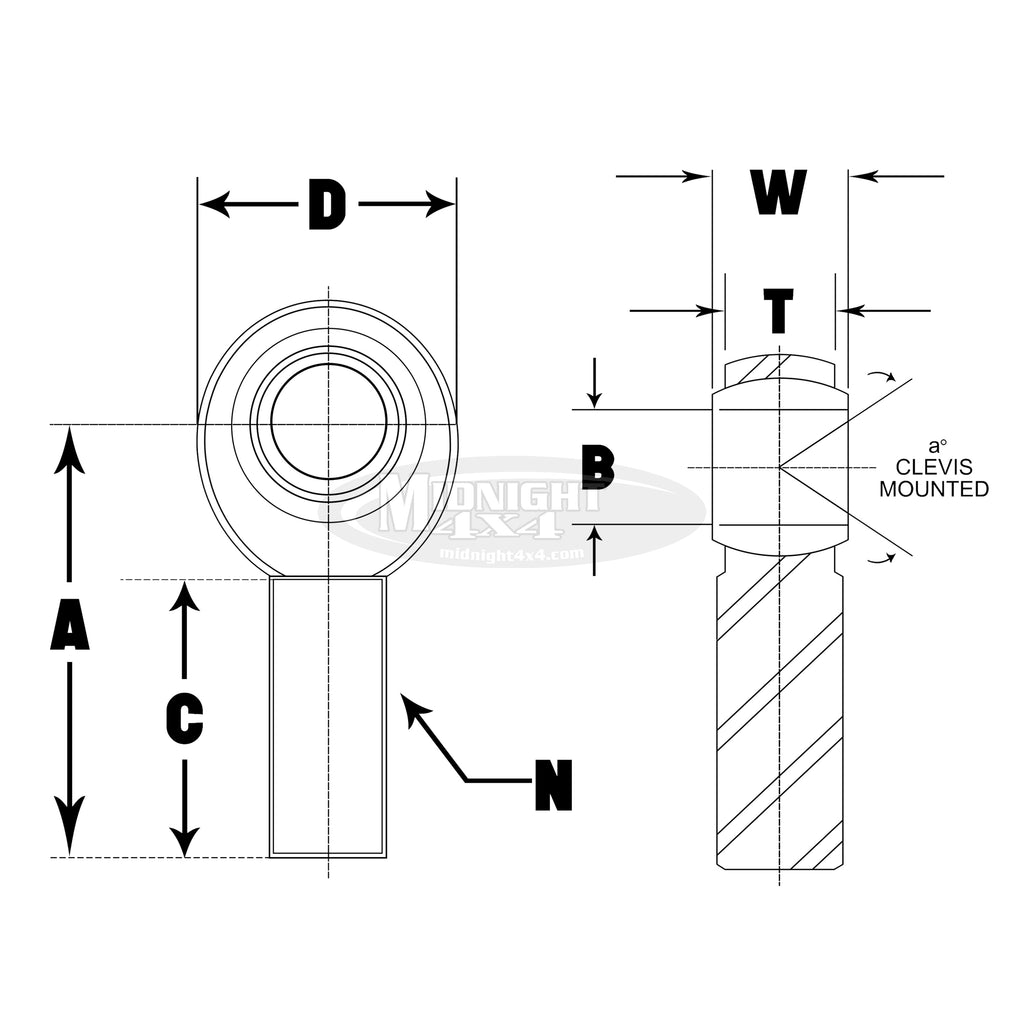

RSMX10T, 3-Piece Rod End, 5/8", Midnight 4x4, Heim Drawing
$37.80

3/4" x 5/8" Race Series Rod End - RSMX10T

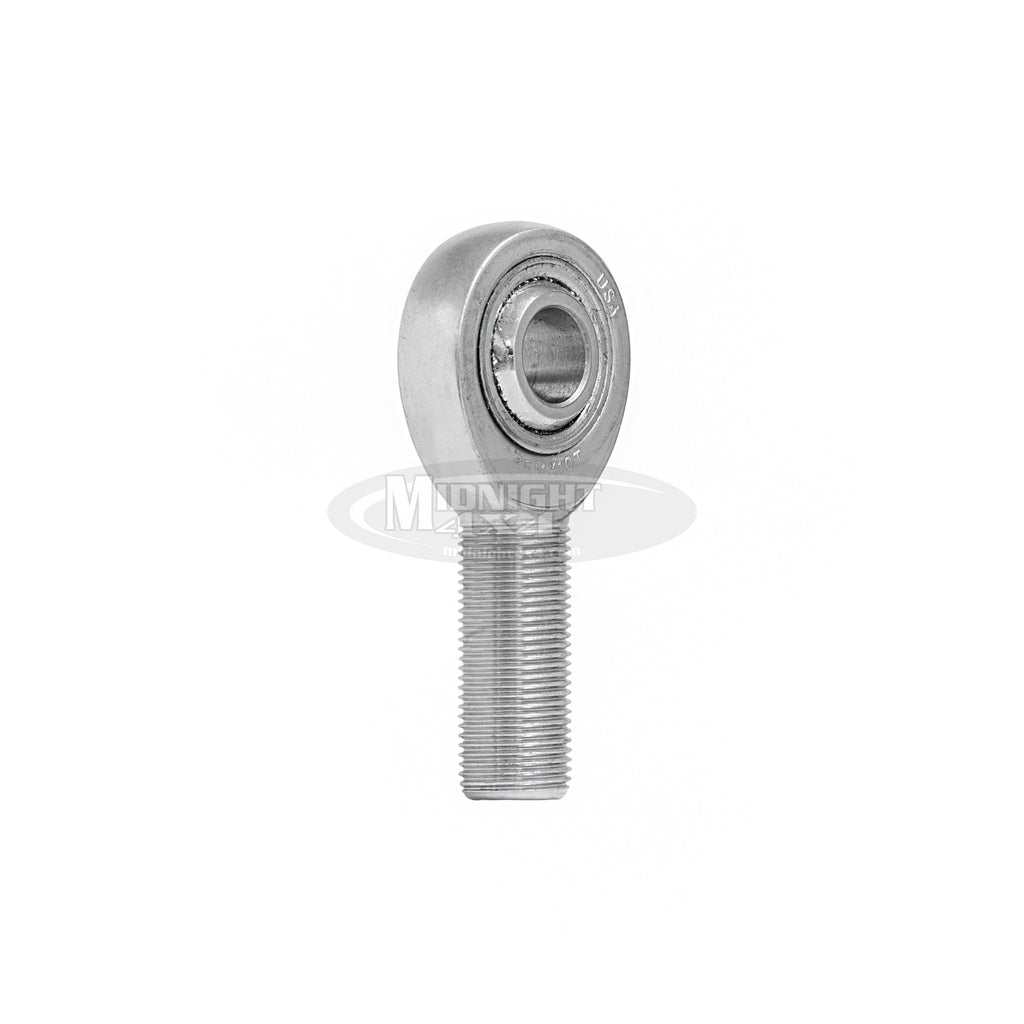

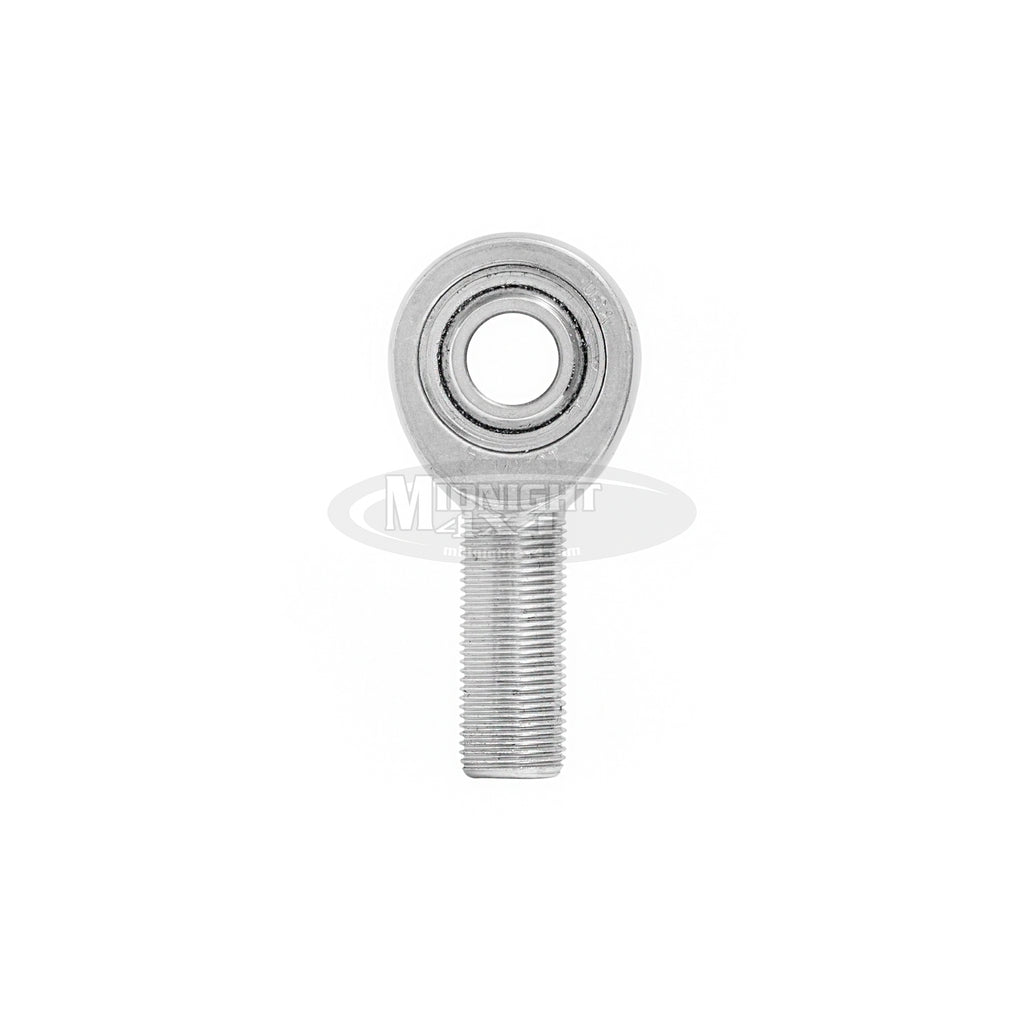

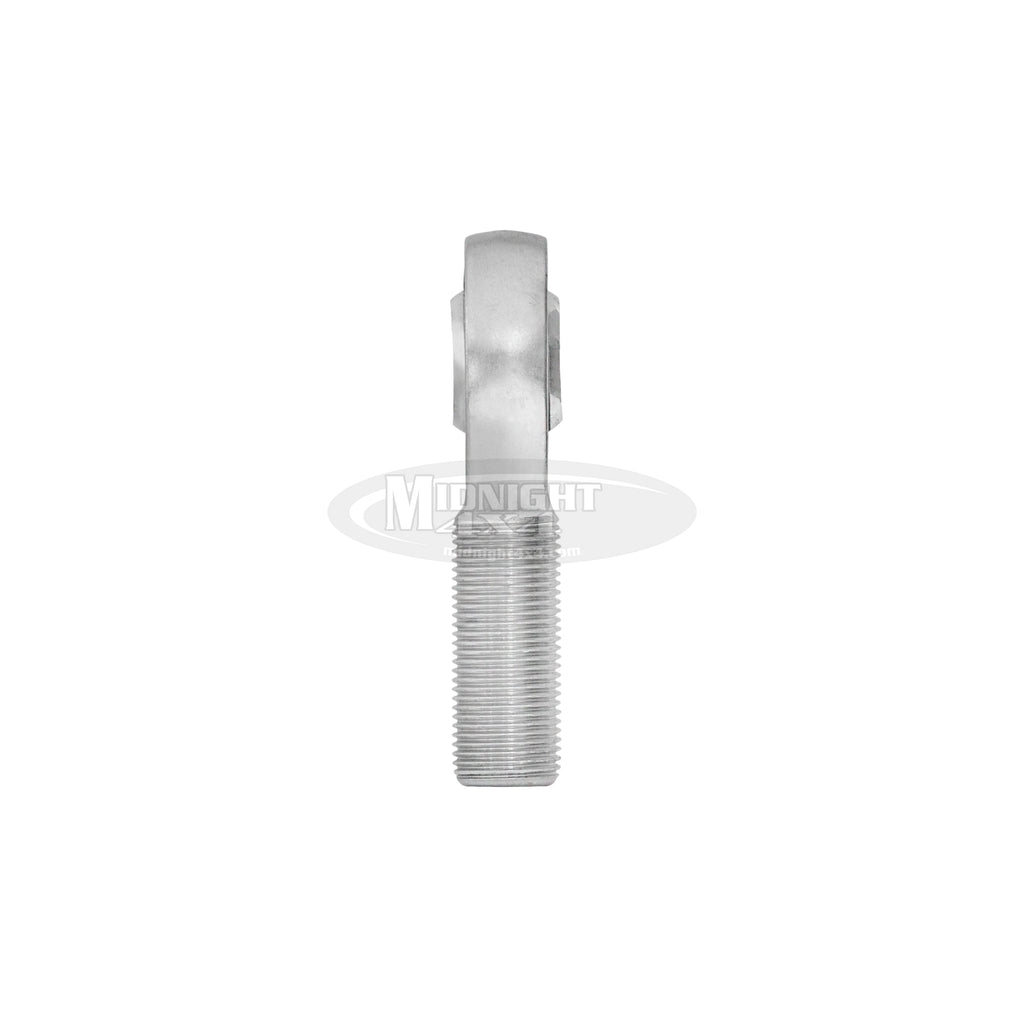

5/8" Hole x 3/4" Shank Heim Joint

B: .625      D: 1.750      W: .750      T: .562      A: 2.875               N: 3/4-16      C: 1.750

Ball Diameter: 1.125

a* Misalignment Angle: 13

Static Radial Load (lbs): 40,590

Approx. Weight (lbs): .602

BALL

  • 52100 STEEL
  • Rc 56 MIN HARD
  • HARD CHROME PLATED

BODY

  • STEEL ALLOY-HEAT TREATED
  • ZINC PLATED
  • CHROMATE TREATED

RACE

  • STEEL ALLOY-HEAT TREATED
  • ZINC PLATED
  • CHROMATE TREATED

LINER

  • PTFE FABRIC



**Sold Individually



All products are generally stocked on shelves. If amount ordered is in excess of stock, longer processing time may apply.
