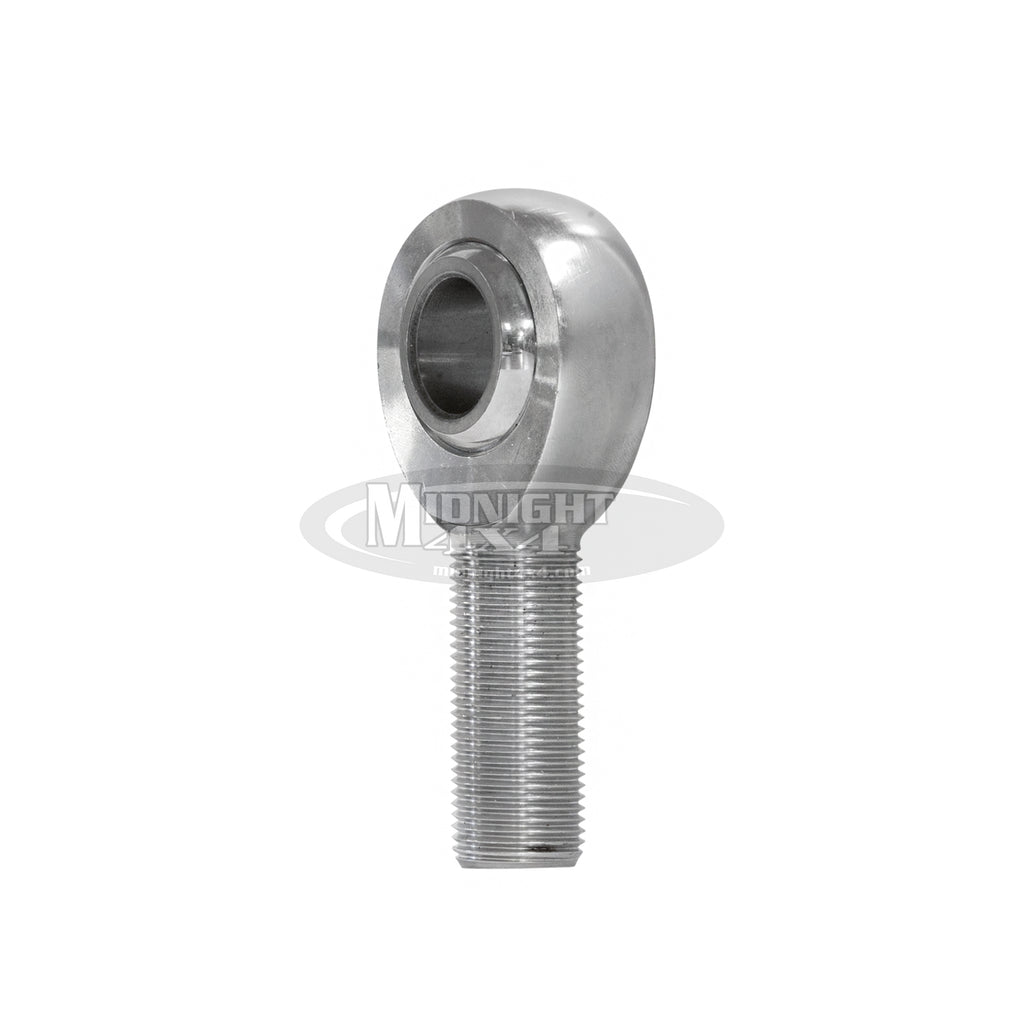

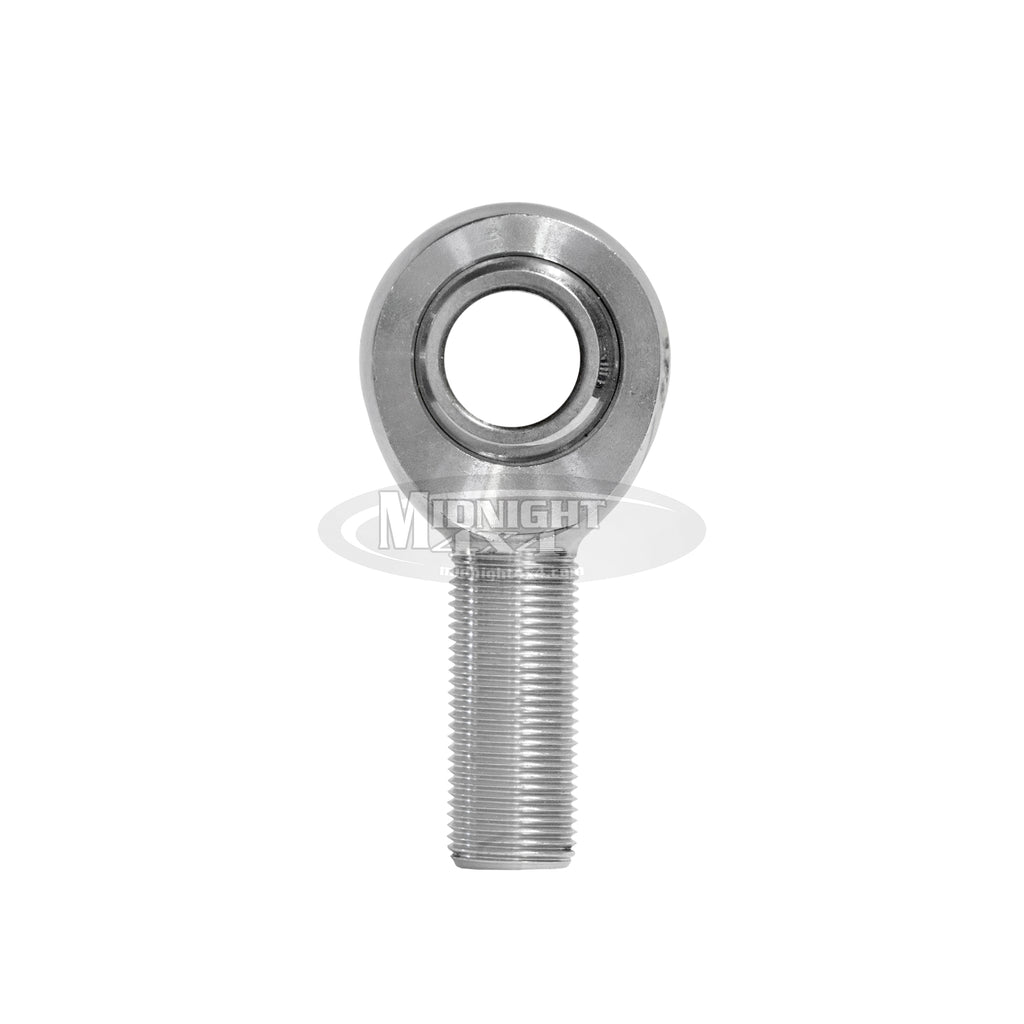

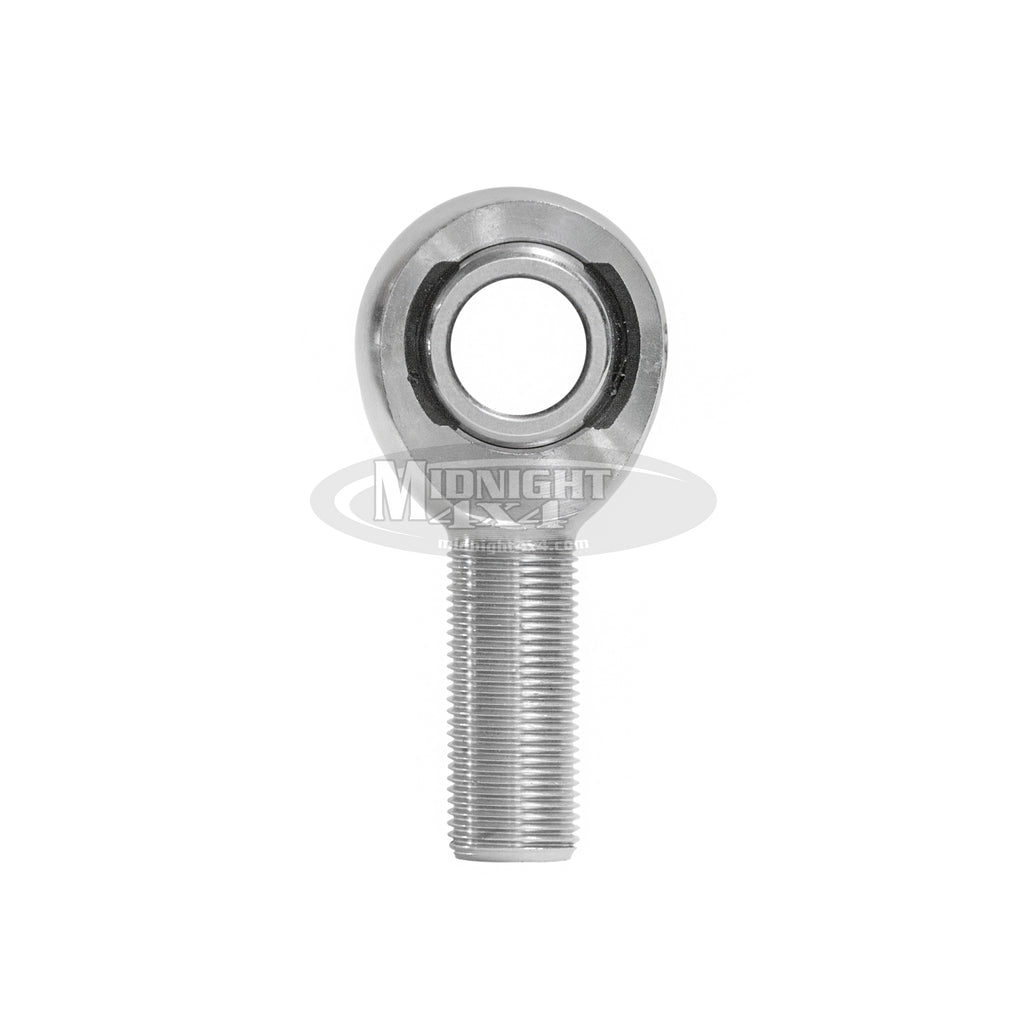

3/4" Rod End, Heim Joint, .750 , Midnight 4x4
3/4" Rod End, Heim Joint, .750 , Midnight 4x4
3/4" Rod End, Heim Joint, .750 , Midnight 4x4 , Heim Joint Diagram
$18.97

KMX12 , KMX Series Rod End, 3/4"

B: 750      D: 1.750      W: .875      T: .687      A: 2.875               N: 3/4-16      C: 1.750

Ball Diameter: 1.312

a* Misalignment Angle: 14

Static Radial Load (lbs): 23,192

Approx. Weight (lbs): .57



BALL

  • 52100 STEEL
  • Rc 56 MIN HARD
  • HARD CHROME PLATED

BODY

  • STEEL ALLOY-HEAT TREATED
  • CHROME PLATED

RACE

  • NYLON 10 OR EQUIVALENT



**Sold Individually

All products are generally stocked on shelves. If amount ordered is in excess of stock additional processing time may apply.
