5/8" x 1/2" Rod End, Heim Joint, Midnight 4x4,

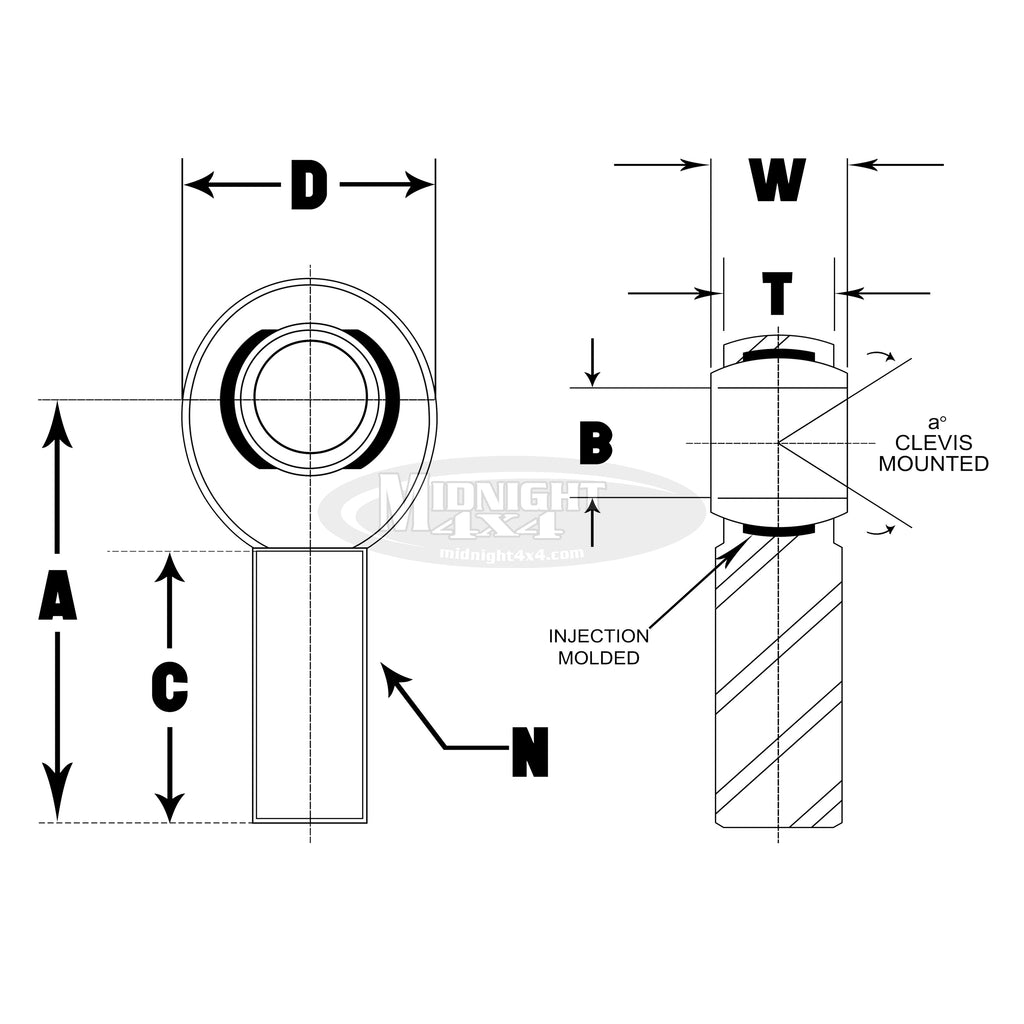

5/8" x 1/2" Rod End, Heim Joint, Midnight 4x4, Heim Joint Diagram
$16.99

KMX10-8 , KMX Series Rod End, 5/8" x 1/2"

B: .500      D: 1.500      W: .625      T: .500      A: 2.625              N:5/8-18      C: 1.625

Ball Diameter: .937

a* Misalignment Angle: 12

Static Radial Load (lbs): 19,960

Approx. Weight (lbs): .36



BALL

  • 52100 STEEL
  • Rc 56 MIN HARD
  • HARD CHROME PLATED

BODY

  • STEEL ALLOY-HEAT TREATED
  • CHROME PLATED

RACE

  • NYLON 10 OR EQUIVALENT



**Sold Individually

All products are generally stocked on shelves. If amount ordered is in excess of stock additional processing time may apply.
