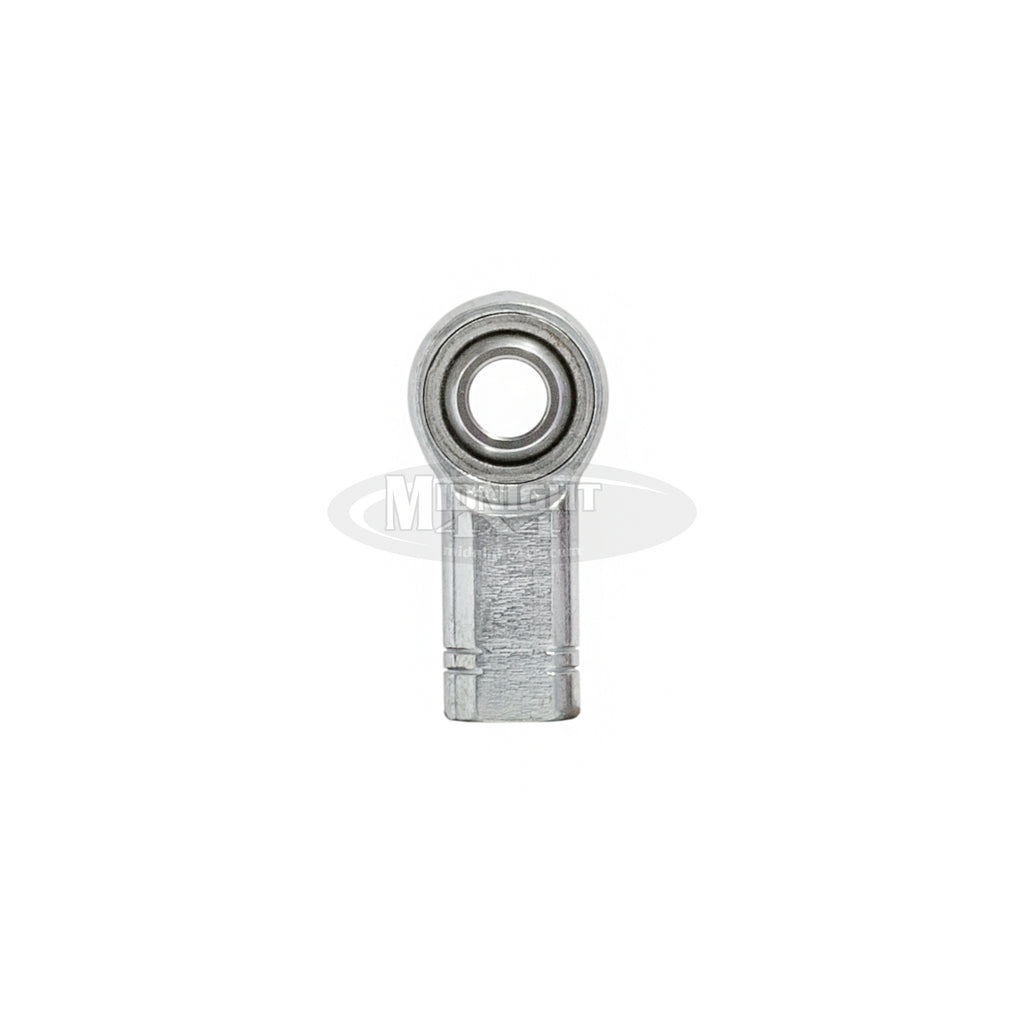

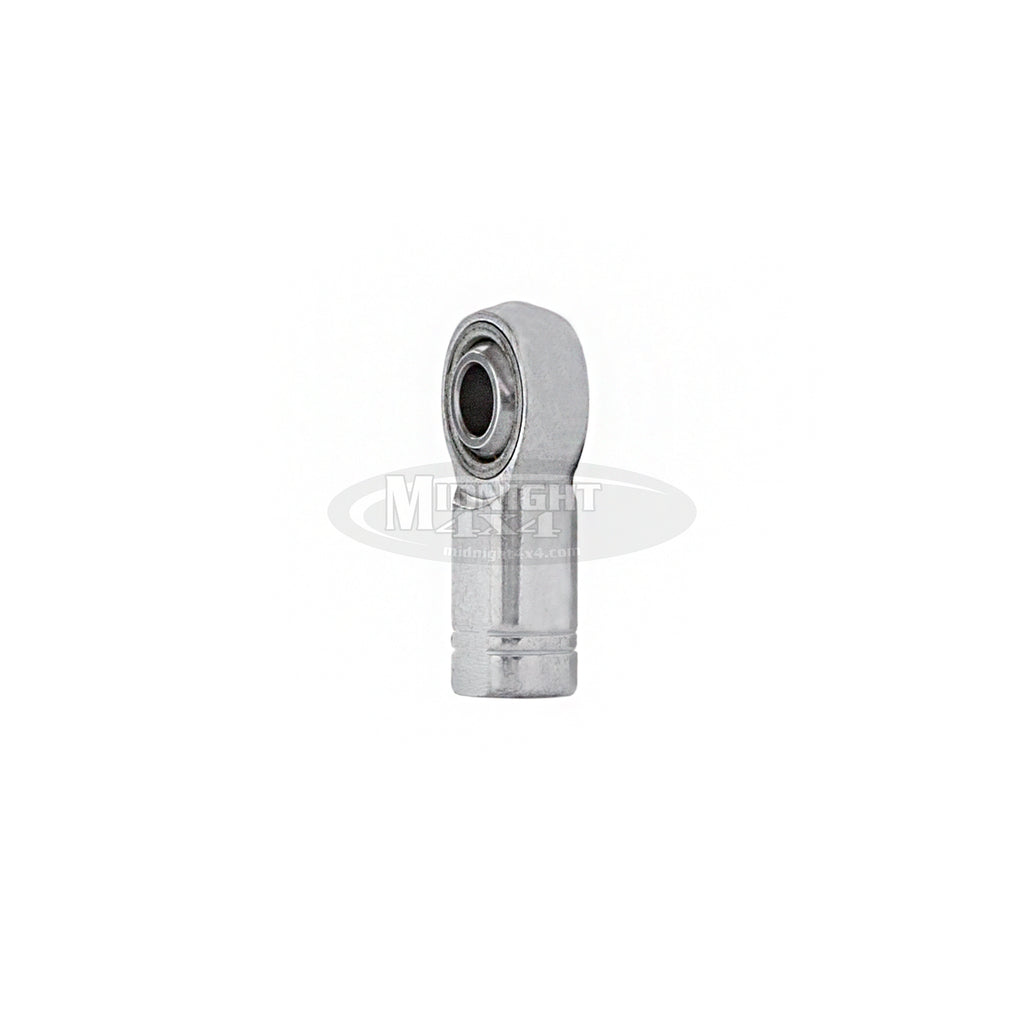

3/8" Female Rod End - JFX6T
3/8" Female Rod End - JFX6T
3/8" Female Rod End - JFX6T
JFX6T, 3-Piece Female Rod End, 3/8" , Midnight 4x4
$16.82

3/8" Female Rod End - JFX6T

3/8" Hole x 3/8" Shank Heim Joint

B: .375      D: 1.000      W: .500      T: .406      A: 1.625               N: 3/8-24     C: .937      E: .687      F: .562

Ball Diameter: .719

a* Misalignment Angle: 12

Static Radial Load (lbs): 9,550

Approx. Weight (lbs): .15



BALL

  • 52100 Steel
  • Rc 56 MIN HARD
  • HARD CHROME PLATED



BODY

  • STEEL ALLOY-HEAT TREATED
  • ZINC PLATED
  • CHROMATE TREATED



RACE

  • STEEL ALLOY-HEAT TREATED
  • ZINC PLATED
  • CHROMATE TREATED



LINER

  • PTFE



**Sold Indivudually

All products are generally stocked on shelves. If amount ordered is in excess of stock additional processing time may apply.
