COMH24T, COMH Commercial Series Bearing, 1.5" , Midnight 4x4
COMH24T, COMH Commercial Series Bearing, 1.5" , Midnight 4x4
COMH24T, COMH Commercial Series Bearing, 1.5" , Midnight 4x4
COMH24T, COMH Commercial Series Bearing, 1.5" , Midnight 4x4
$48.15

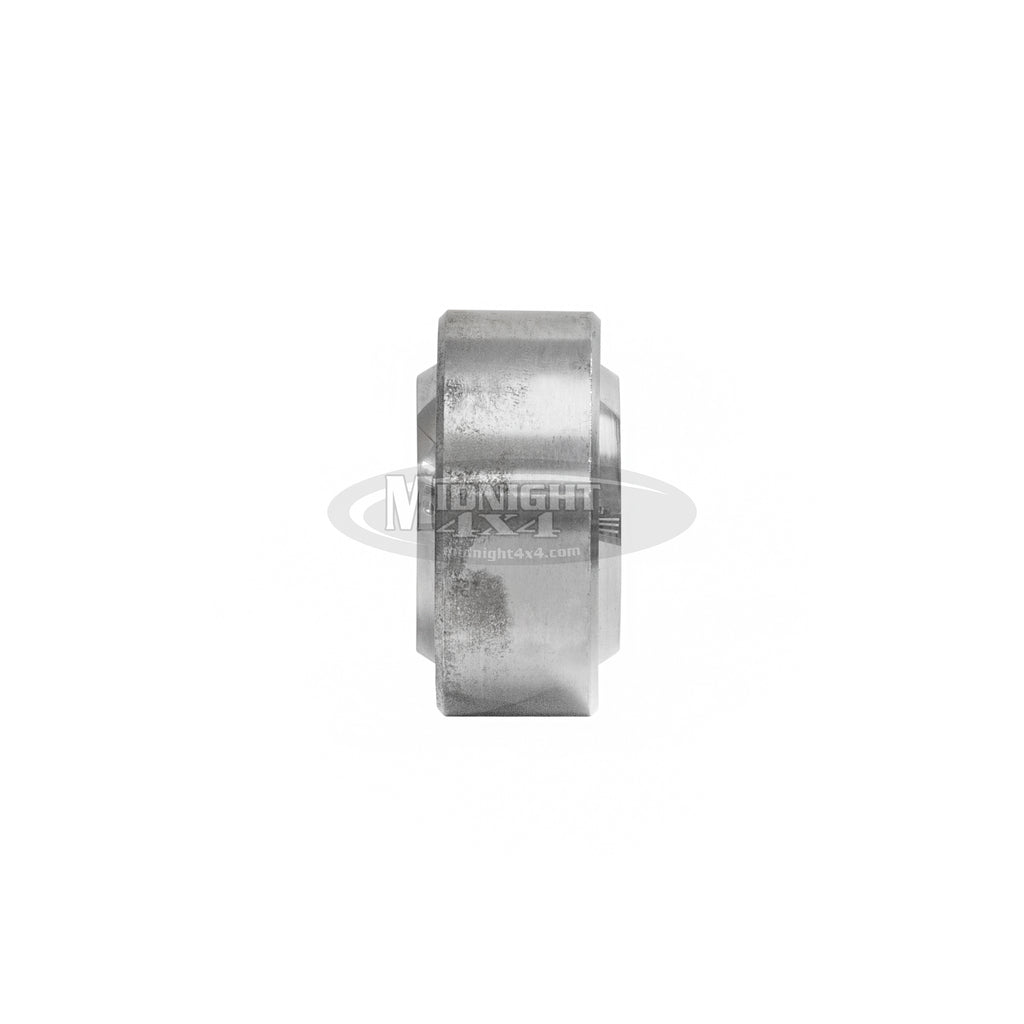

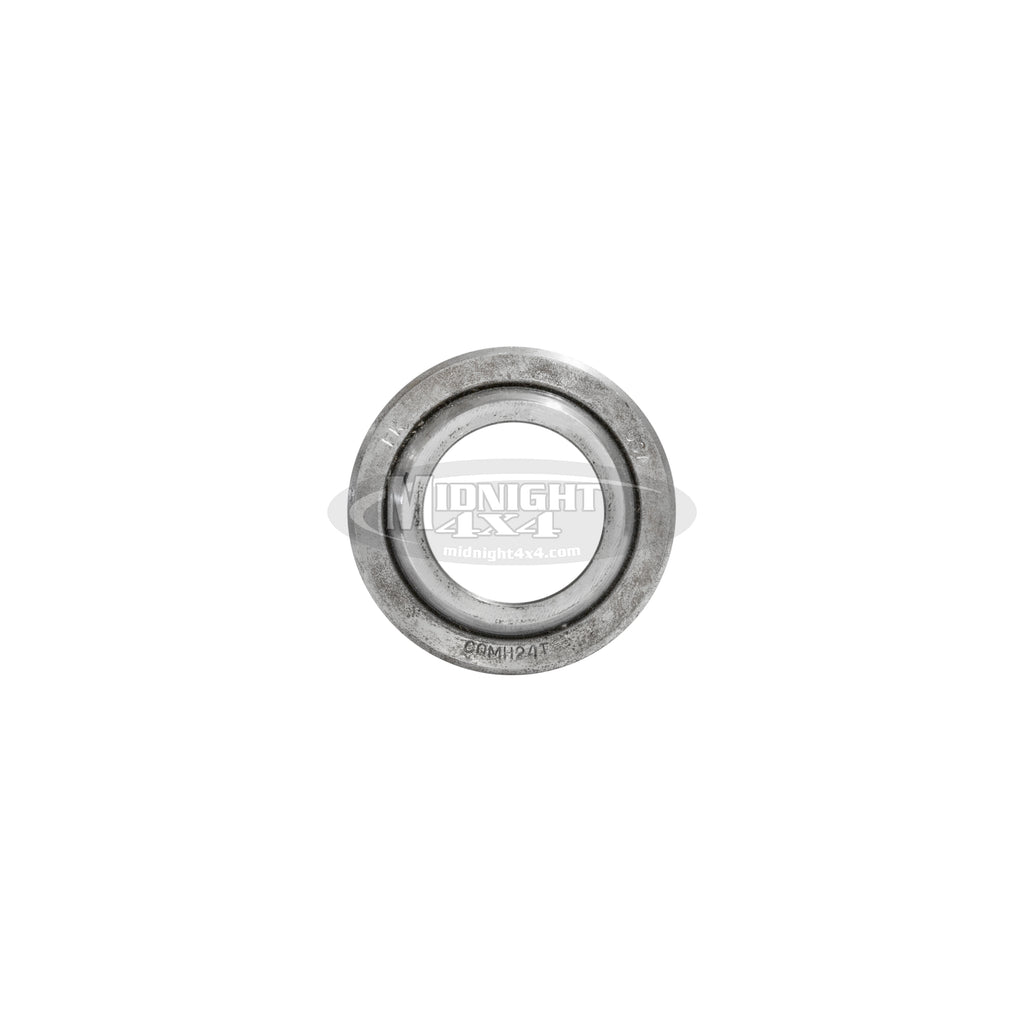

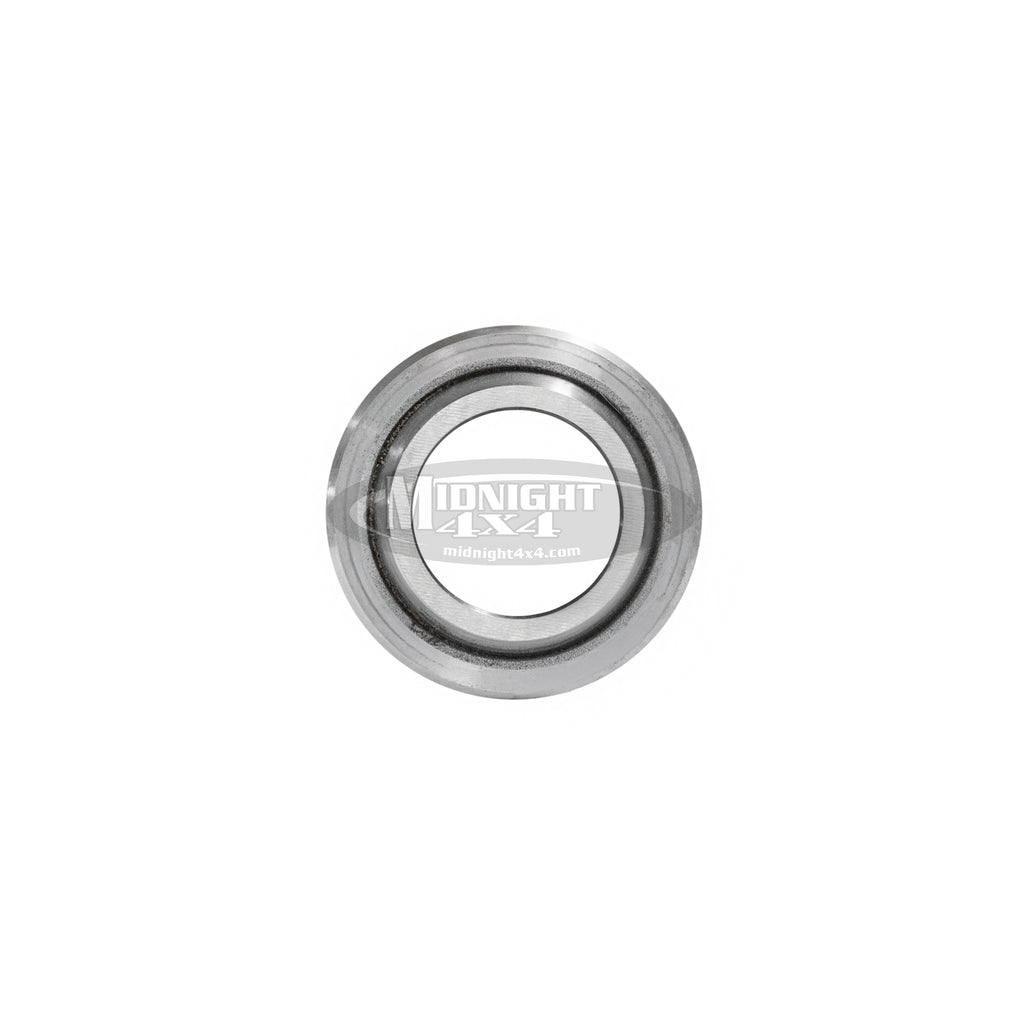

COMH24T, COMH Commercial Series Bearing, 1.5"

B: 1.500      D: 2.750      W: 1.375      T: 1.095      O: 1.860

Ball Diameter: 2.312

Chamfer: .032

a* Misalignment Angle: 8.5

Ult. Static Radial Load (lbs): 135,950

Approx. Weight (lbs): 1.358



Suggested Housing Bore For Press Fit of Spherical Bearing

  • Steel Housing: Max - 2.7494  Min - 2.7486
  • Aluminum Housing: Max - 2.7493  Min - 2.7485



BALL

  • 52100 STEEL
  • Rc 56 MIN HARD
  • HARD CHROME PLATE

RACE

  • LOW CARBON STEEL
  • OIL COATED

LINER

  • PTFE FABRIC

 All products are generally stocked on shelves. If amount ordered is in excess of stock, longer processing time may apply.

**Sold Individually
