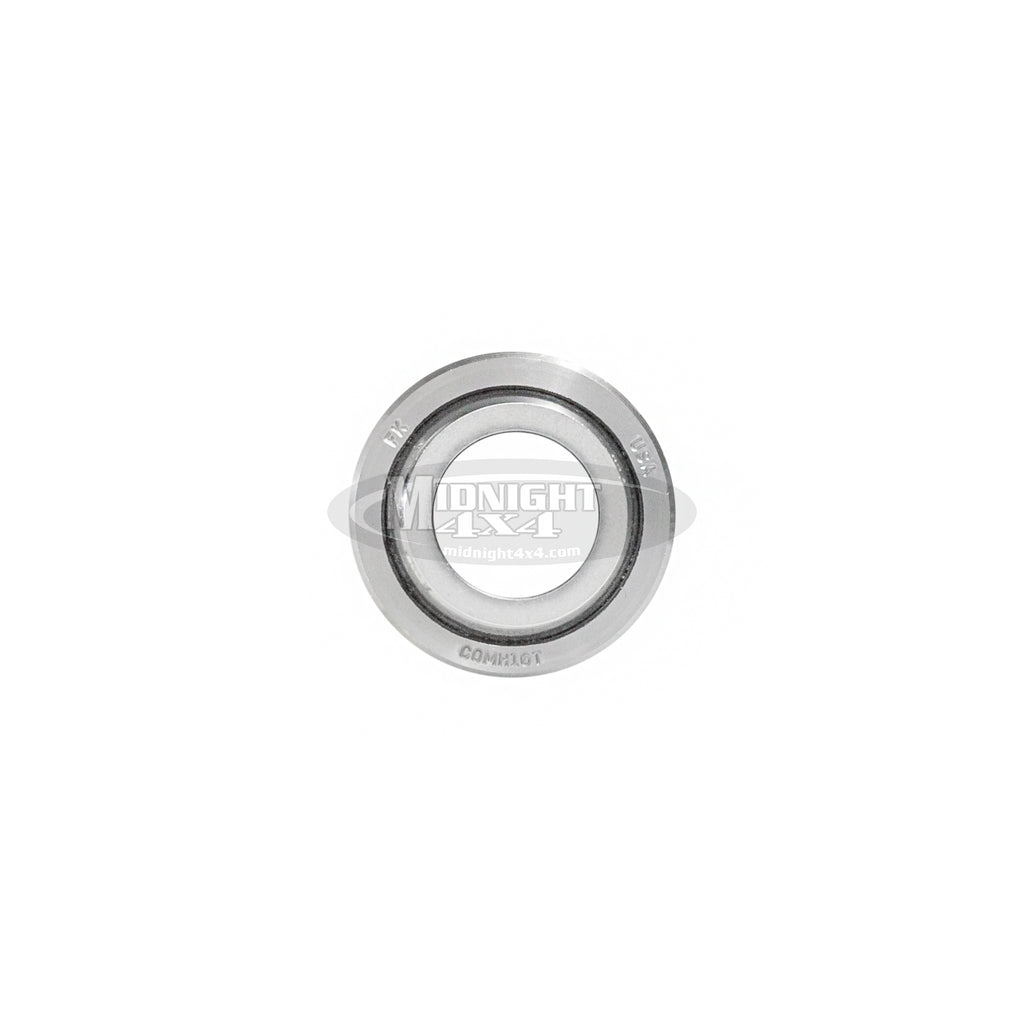

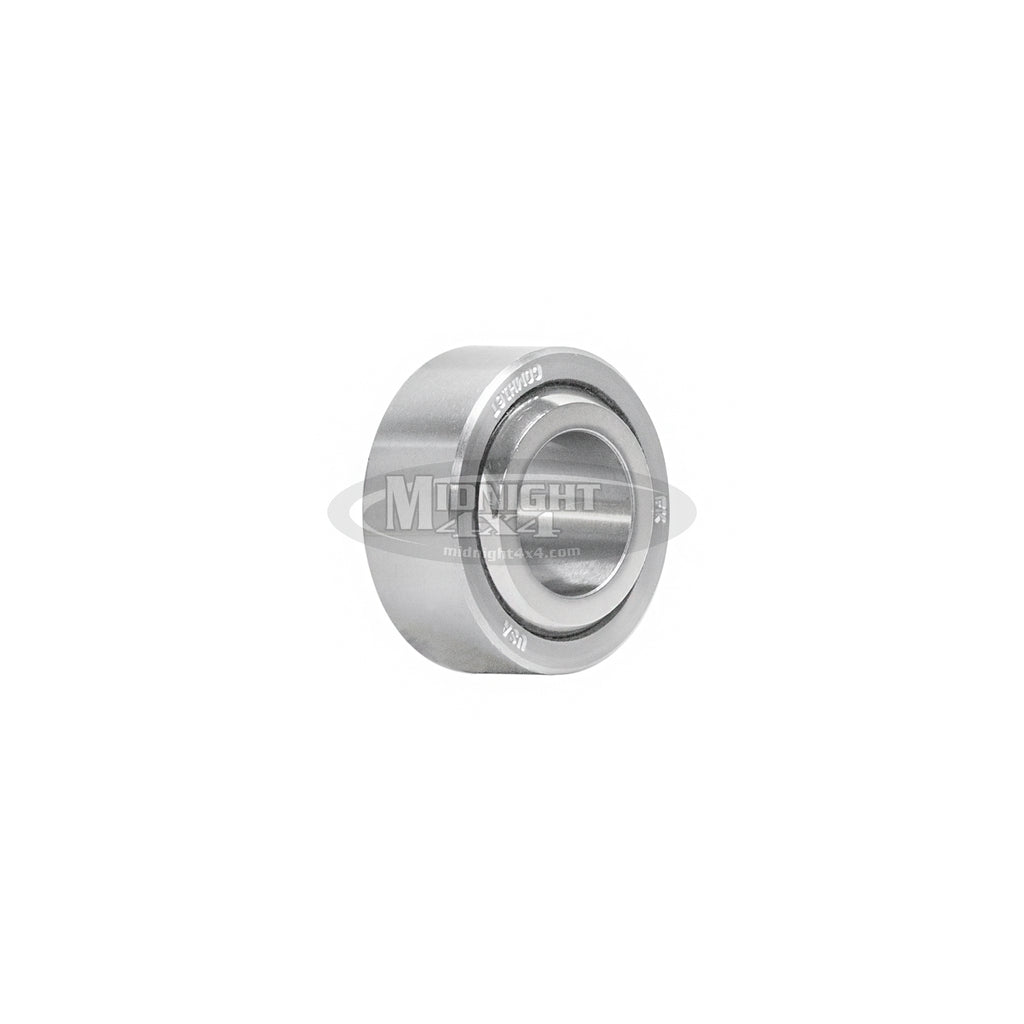

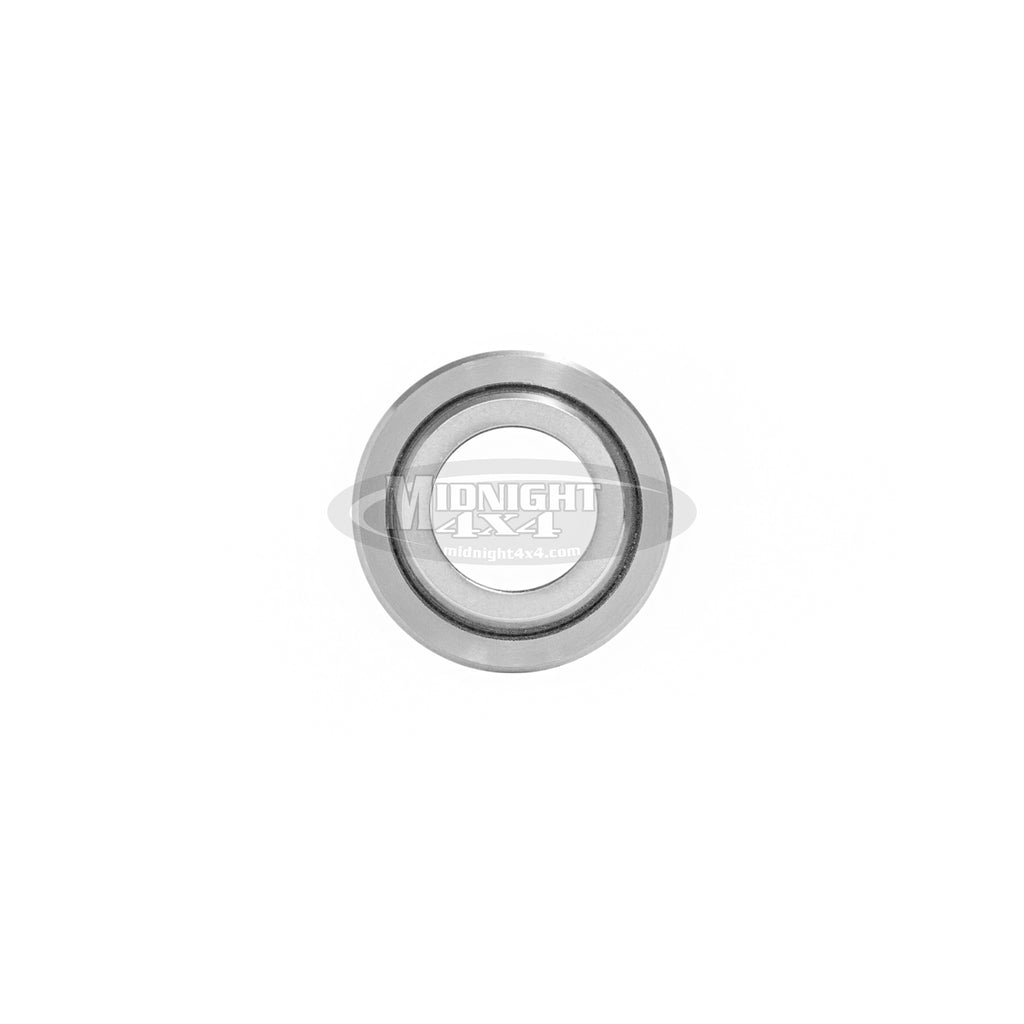

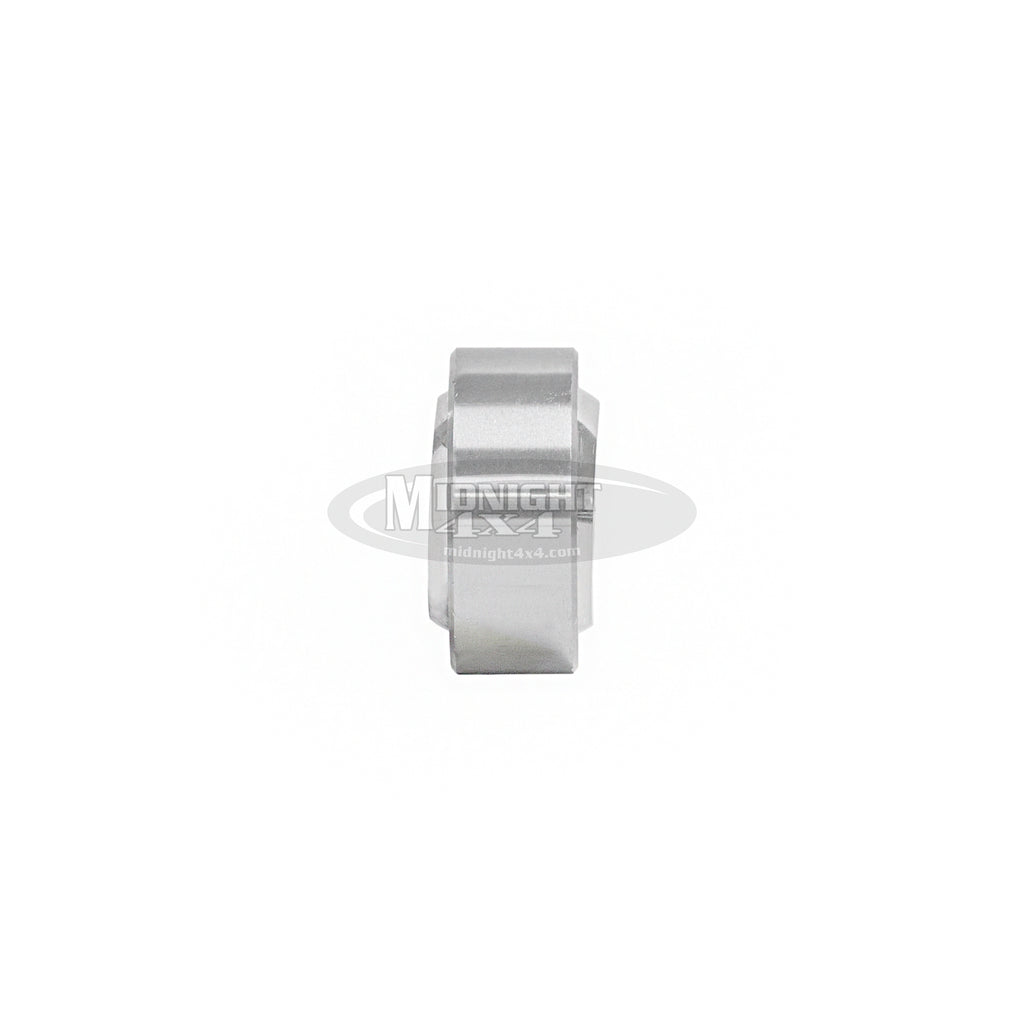

COMH16T, COMH Commercial Series Bearing, 1"
COMH16T, COMH Commercial Series Bearing, 1"
COMH16T, COMH Commercial Series Bearing, 1"
COMH16T, COMH Commercial Series Bearing, 1"
$31.97

COMH16T, COMH Commercial Series Bearing, 1"

B: 1.000      D: 2.000      W: 1.000      T: .781      O: 1.360

Ball Diameter: 1.687

Chamfer: .032

a* Misalignment Angle: 9

Static Radial Load (lbs): 70,820

Approx. Weight (lbs): .553



BALL

  • 52100 STEEL
  • Rc 56 MIN HARD
  • HARD CHROME PLATED

RACE

  • LOW CARBON STEEL
  • OIL COATED

LINER

  • PTFE



Suggested Housing Bore For Press Fit of Spherical Bearings

Bearing Outside Diameter : 1.750

Steel Housing:  Max- 1.7494  Min- 1.7486

Aluminum Housing:  Max-1.7493  Min- 1.7485



*NO LUBRICATION HOLES OR GROOVES IN RACE



**Sold Individually

 All products are generally stocked on shelves. If amount ordered is in excess of stock, longer processing time may apply.
