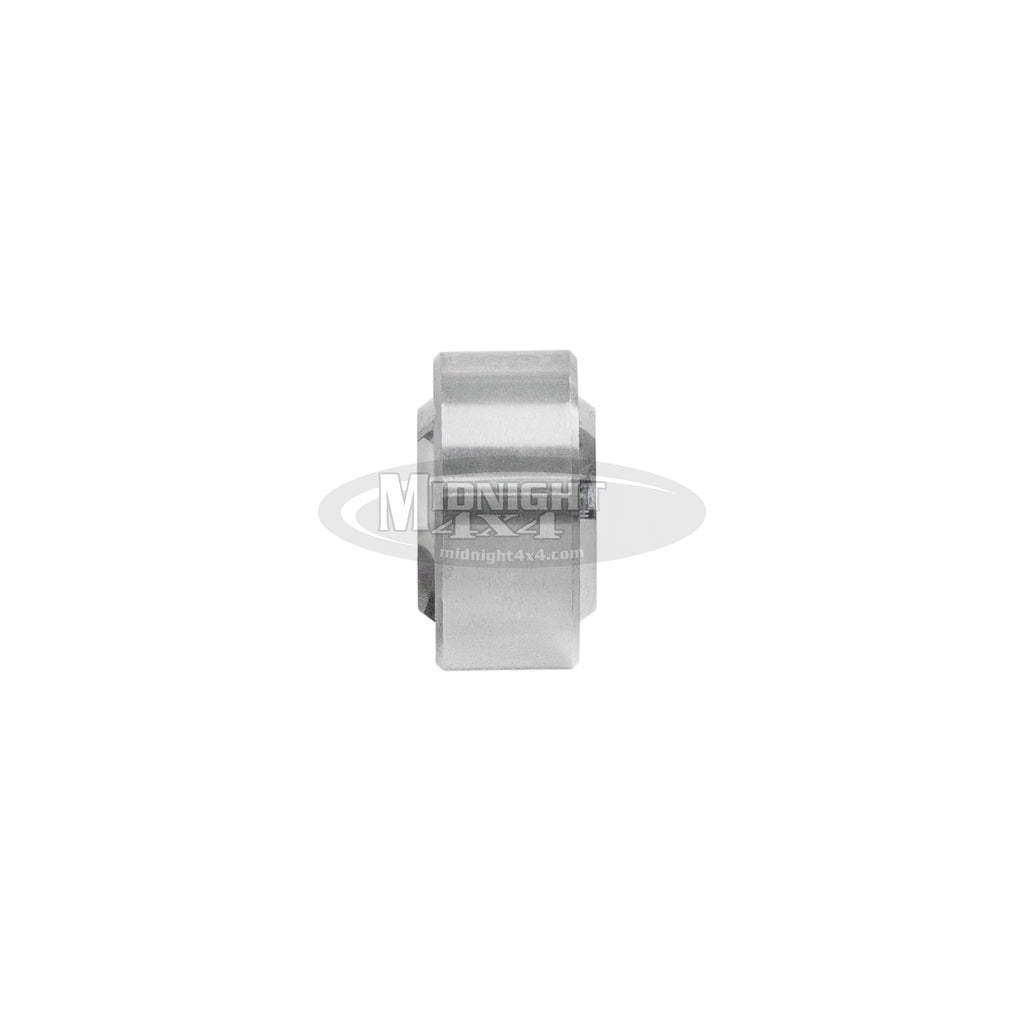

COM14T, Commercial Series Spherical Bearing, 3/4" , Midnight 4x4
COM14T, Commercial Series Spherical Bearing, 3/4" , Midnight 4x4
COM14T, Commercial Series Spherical Bearing, 3/4" , Midnight 4x4
$14.22

COM14T, Commercial Series Spherical Bearing, 7/8"

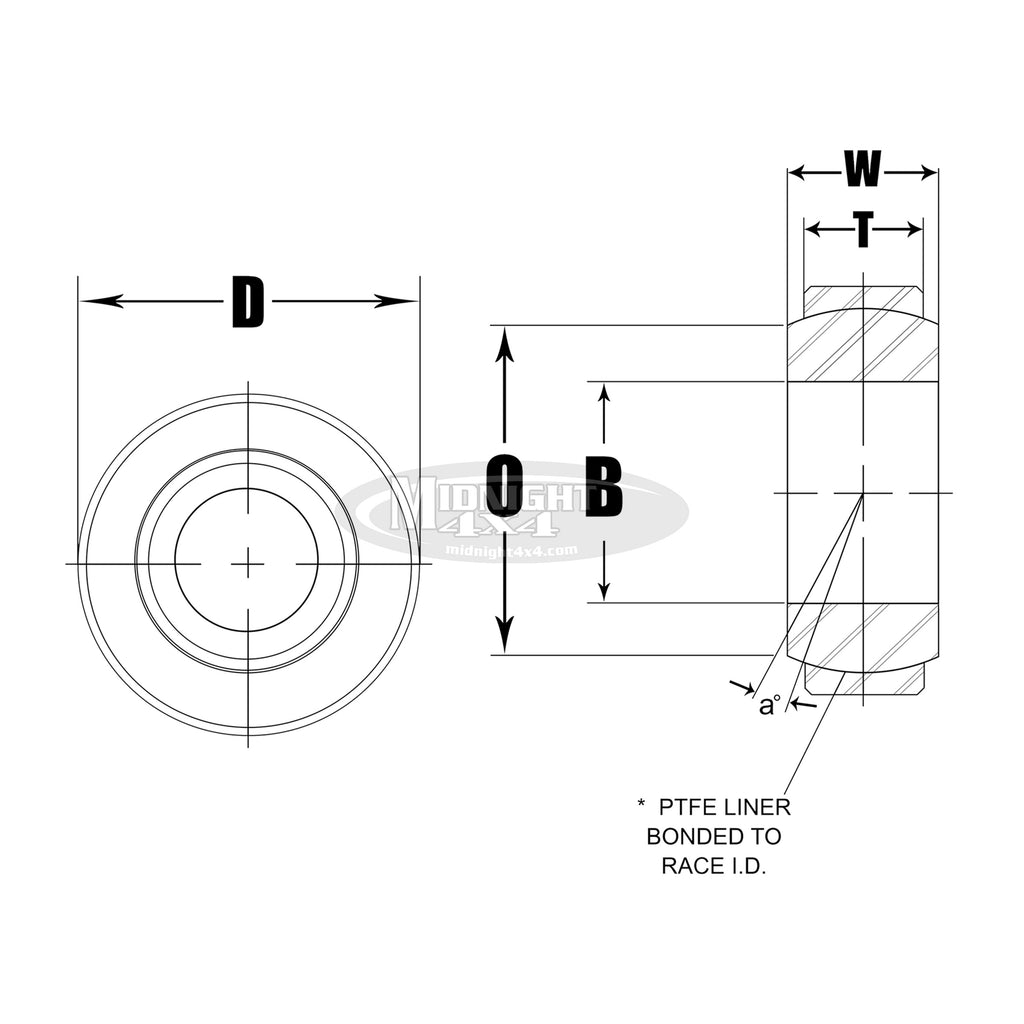

B: .875      D: 1.562      W: .875      T: .703      O: .980

Ball Diameter: 1.312

Chamfer: .044

a* Misalignment Angle: 9.5

Static Radial Load (lbs): 41,960

Approx. Weight (lbs): .263



BALL

  • 52100 STEEL
  • Rc 56 MIN HARD
  • HARD CHROME PLATED

RACE

  • LOW CARBON STEEL
  • OIL COATED

LINER

  • PTFE



Suggested Housing Bore For Press Fit of Spherical Bearings

Bearing Outside Diameter : 1.562

Steel Housing:  Max- 1.5619  Min- 1.5613

Aluminum Housing:  Max-1.5618  Min- 1.5611



*NO LUBRICATION HOLES OR GROOVES IN RACE



**Sold Individually

All products are generally stocked on shelves. If amount ordered is in excess of stock, longer processing time may apply.

Warning:Cancer and Reproductive Harm www.P65Warnings.ca.gov
