Steering Heim Joint - CM12-757
Steering Heim Joint - CM12-757
CM12-757, 2-piece, Metal to Metal, Special Bore Size Rod End
$12.09

Steering Heim Joint - CM12-757

The bore in this heim is oversized so you can slide 3/4" OD tubing into it. We use this when we build race car/ buggy steering columns using 3/4" OD round tubing. Metal to metal construction.

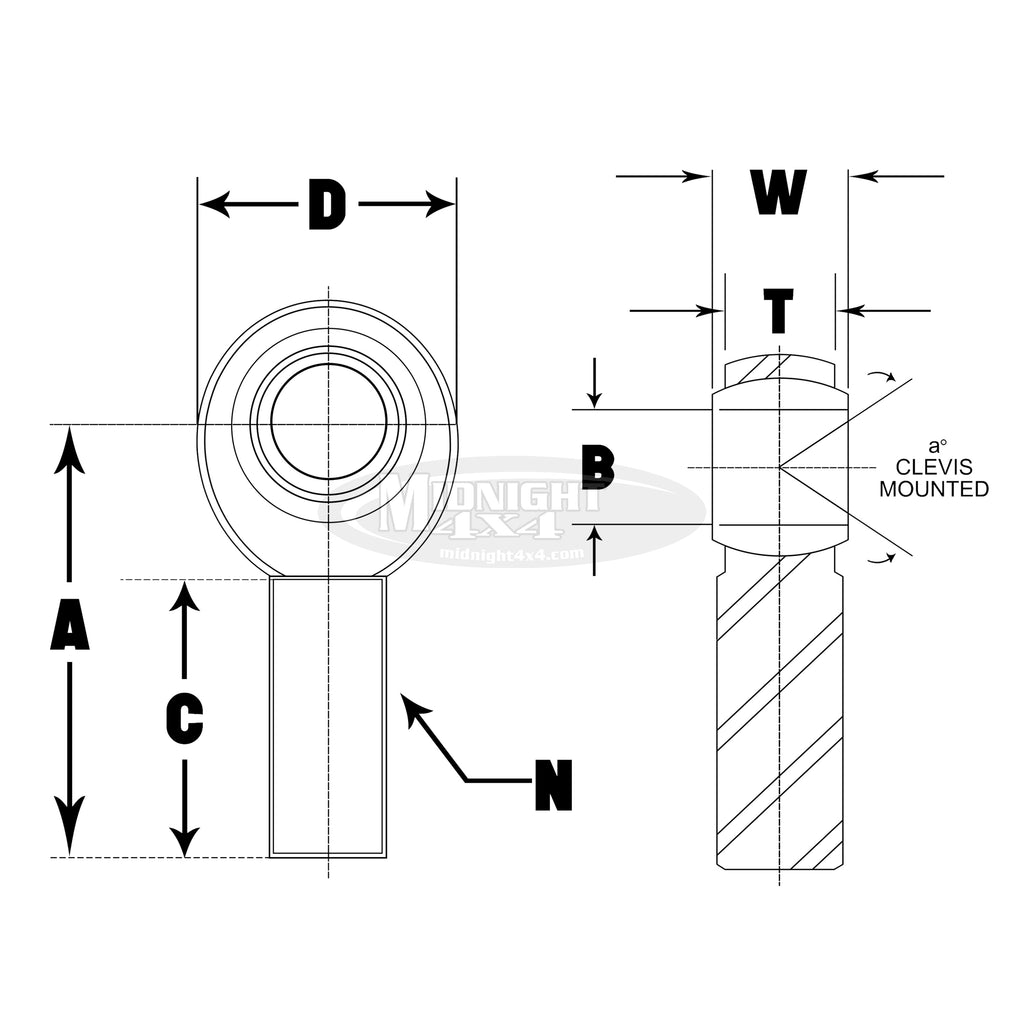

B: .7570      D: 1.750      T: .593      A: 2.875      C: 1.750

Ball Diameter: 1.312

Thread Size: 3/4-16

Static Radial Load (lbs): 14,290

Approx. Weight (lbs): .560



**Sold Individually

**Choose to purchase this item with or without a jam nut

 All products are generally stocked on shelves. If amount ordered is in excess of stock, longer processing time may apply.
